Cable Trays are used in the cable wiring system installations The reason to select a ventilated trough cable tray over a ladder-type cable tray is aesthetics. No drooping of cables is visible. The ventilated trough cable tray does provide more support to the cables than does the ladder cable tray but this additional support is not significant.
Main Characteristics:
- Material: Mild Steel; Galvanized Steel; Stainless Steel; Aluminum.
- Finish: Powder coated or hot-dip galvanized after fabrication for Mild Steel; Original finish for Stainless Steel, Galvanized Steel, and Aluminum.
- Colour: Grey, Orange, Red, White, Ivory Beige, Green, Black, Blue, and Other Color available on request.
- Dimensions:
- Height: 50mm, 75mm, 100mm, 150mm, 200mm.
- Width: 50mm, 75mm, 100mm, 150mm, 200mm, 300mm, 400mm, 500mm, 600mm, 700mm, 800mm.
- Length: 3000mm.
- Material thickness: 1.0mm, 1.2mm, 1.5mm, 2.0mm.
- Covers: Secured using fit Screw. Screws are included with covers as standard.
- Coupler Hole Diameter: M8 clearance.

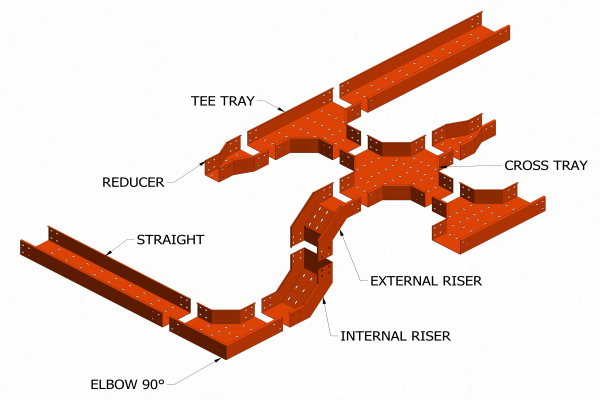

- Accessories: Couplers, Tapping Screws, Bolts & Nuts.
