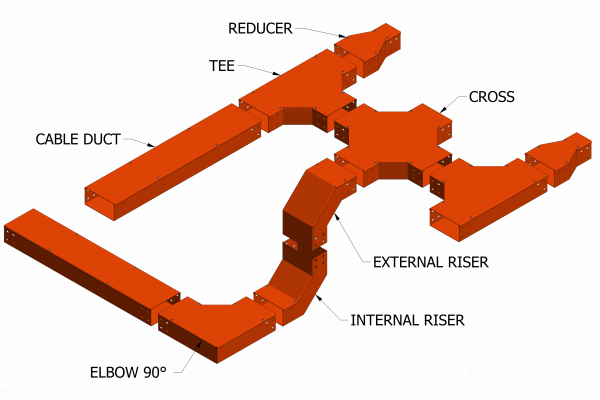

Cable Ducts are used in the cable wiring system installations. The reason for selecting Cable Ducts ( with covers ) is the concern of EMI/RFI shielding protection for very sensitive circuits. Cable ducts with steel covers provide a good degree of shielding if there are no breaks or holes in the completed installation. Some engineers and designers specify Cable ducts ( often with covers ) in the belief that all electrical circuits have to be totally enclosed by metal.
Main Characteristics:
- Material: Mild Steel; Galvanized Steel; Stainless Steel; Aluminum.
- Finish: Powder coated or hot-dip galvanized after fabrication for Mild Steel; Original finish for Stainless Steel, Galvanized Steel, and Aluminum.
- Colour: Grey, Orange, Red, White, Ivory Beige, Green, Black, Blue and Other Color available on request
- Dimensions:
- Height: 50mm, 75mm, 100mm, 150mm, 200mm.
- Width: 50mm, 75mm, 100mm, 150mm, 200mm, 300mm, 400mm, 500mm, 600mm, 700mm, 800mm.
- Length: 3000mm.
- Material thickness: 1.0mm, 1.2mm, 1.5mm, 2.0mm.
- Covers: Secured using fit Screw. Screws are included with covers as standard.
- Coupler Hole Diameter: M8 clearance.
- Accessories: Couplers, Tapping Screws, Bolts & Nuts.
