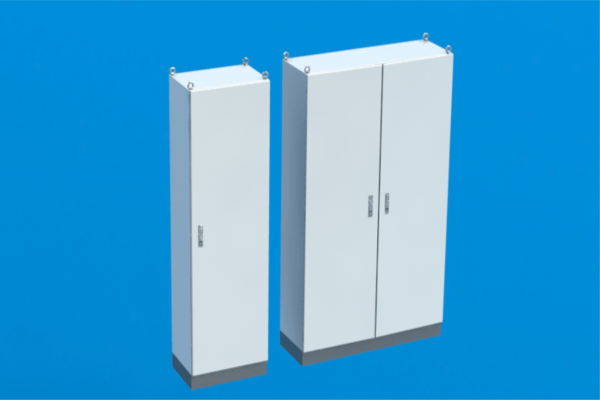

Monoblock enclosures MEB

The series of MEB enclosure is suitable for the construction of electrical switchboards for operation and control of technological plants, covering the middle market segment of automation switchboards in particular. These monobloc enclosures are suitable for making floor-mounted electrical switchboards, offering numerous customization possibilities based on individual needs and habits. The MEB enclosures, within the range of MEE enclosures, take an intermediate position in terms of dimensions, functions, and price, offering a unique ensemble of technical characteristics, along with the simplicity of assembly.

Main characteristics

- Standard:                                  In compliance with the Standard IEC 61439-1-2.

- Rated service voltage Ue:         up to 1000V.

- Rated insulation voltage Ui:      up to 1000V.

- Rated frequency:                      50-60 Hz.

- Segregation Form:                    up to form 2b.

- IP protection class:                   IP30, IP31, IP40, IP41, IP43, IP54, IP65.

- Material:                                   Mild Steel; Galvanized Steel; Ecogal; Stainless Steel.

- Finish:                                      Standard color RAL 7035, other colors available on request.

- Overall dimensions:

  • Height (mm):                           1400, 1500, 1600, 1700, 1800, 1900, 2000, 2100, 2200.
  • Width (mm):                             600, 700, 800, 900, 1000, 1200, 1600.
  • Depth (mm):                             300, 400, 500, 600, 700, 800.
